| MG16/3.2-20/5-32/5-50/10噸雙梁門式起重機 |
|
起重量/工作級別
|
t
|
16/3.5 A5
|
20/5 A5
|
32/5 A5
|
50/10 A5
|
|
起升高度
|
m
|
10
|
11
|
10
|
11
|
10
|
11
|
10
|
11
|
|
跨度
|
m
|
18
|
22
|
26
|
30
|
35
|
18
|
22
|
26
|
30
|
35
|
18
|
22
|
26
|
30
|
35
|
18
|
22
|
26
|
30
|
35
|
|
起重機總重
|
t
|
75.8
|
84.7
|
96.8
|
116.8
|
130.6
|
76.5
|
85.4
|
97.3
|
118.5
|
133.4
|
96.2
|
105.2
|
120.1
|
131.3
|
147.5
|
102.2
|
110.7
|
128
|
138
|
148.8
|
|
輪壓
|
t
|
22.3
|
23.7
|
25.2
|
26.8
|
28.5
|
24.8
|
26.2
|
27.7
|
29.4
|
31.2
|
29.6
|
31.3
|
33.2
|
35.2
|
38.5
|
35.8
|
37.4
|
39.2
|
41
|
42.8
|
|
速度
|
大車運行
|
m/min
|
37.6
|
37.6
|
38.2
|
38.6
|
|
小車運行
|
44.2
|
44.2
|
41.9
|
41.9
|
|
起升
|
9.5
|
9.2
|
7.5
|
6.2
|
|
副起升
|
18.5
|
18.7
|
19
|
12.5
|
|
電動機
|
大車運行
|
kw
|
YZR160M1-6/4x5.5
|
YZR160M2-8/4x7.5
|
YZR160M1-6/4x5.5
|
YZR160M2-6/4x7.5
|
YZR160M2-6/4x7.5
|
YZR160L-6/4x11
|
YZR160L-6/4x11
|
|
小車運行
|
YZR132M2-6/3.7
|
YZR132M2-6/3.7
|
YZR160M1-6/5.5
|
YZR160M2-6/7.5
|
|
起升
|
YZR255M-8/22
|
YZR250M1-8/30
|
YZR280S-8/45
|
YZR280M-8/55
|
|
副起升
|
YZR160L-6/11
|
YZR180L-6/15
|
YZR180L-6/15
|
YZR200L-6/22
|
|

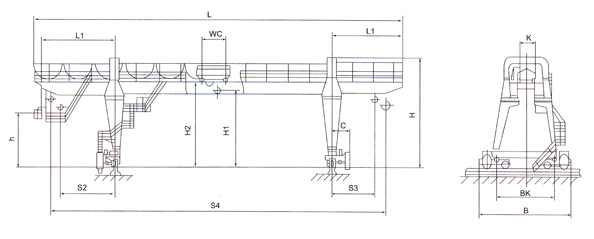

主要尺寸
|
L
|
m
|
33
|
37
|
47
|
51
|
56
|
33
|
37
|
47
|
51
|
56
|
33
|
37
|
47
|
51
|
56
|
33
|
37
|
47
|
51
|
56
|
|
B
|
mm
|
10800
|
10800
|
11800
|
11800
|
|
H
|
14000
|
15000
|
14000
|
15000
|
14500
|
15500
|
15000
|
16000
|
|
C
|
1000
|
1000
|
1150
|
1150
|
|
Bk
|
8000
|
8000
|
8000
|
8000
|
|
K
|
2000
|
2000
|
2500
|
2500
|
|
Wc
|
2400
|
2400
|
2700
|
3100
|
|
h
|
9000
|
9000
|
9000
|
9000
|
|
L1
|
7000
|
9000
|
7000
|
9000
|
7500
|
9500
|
7500
|
9500
|
|
極限尺寸
|
h1(h2)
|
|
1000(11000)
|
11000(12000)
|
1000(11000)
|
11000(12000)
|
1000(11000)
|
11000(12000)
|
1000(11000)
|
11000(12000)
|
|
S1(S3)
|
5000
|
7000
|
5000
|
7000
|
5000
|
7000
|
5000
|
7000
|
|
S2(S4)
|
5000
|
7000
|
5000
|
7000
|
5000
|
7000
|
5000
|
7000
|
|
適用軌道
|
|
43kg/m
|
QU80
|
